About Tubes

Monolayer Tubes

RPC Astrapak’s tubes can be manufactured as Monolayer or EVOH Multilayer. The type of tube that is manufactured is largely dependent on the type of product that is being packaged. Unless compatibility trials have been conducted on monolayer tubes and found to be successful, we strongly advise that the following products are packaged in Multilayer tubes:

  • SPF
  • Essential Oils
  • Organic Ingredients
  • Clear Gel products (Face Wash, Body Wash, Hand Sanitisers)

EVOH Multilayer Tubes

GAS BARRIER PROPERTIES

EVOH (Ethelyne Vinyl Alcohol) resins offer outstanding gas barrier properties, which are superior to those of any other conventional polymer. Food quality generally deteriorates due to the presence of oxygen, EVOH effectively enhances flavour and quality retention by preventing oxygen from penetrating through the package.

RESISTANCE TO OIL AND ORGANIC SOLVENTS

EVOH’s resistance to oils and organic solvents is very good. EVOH is therefore suitable for packaging oily foods, edible oils, mineral oils, agricultural pesticides and organic solvents.

AROMA AND FLAVOUR PRESERVATION

EVOH based packaging is effective in retaining fragrances and preserving the aroma and flavour of the contents within the package for the desired period of time. At the same time, undesirable odours are prevented from entering the packaging.

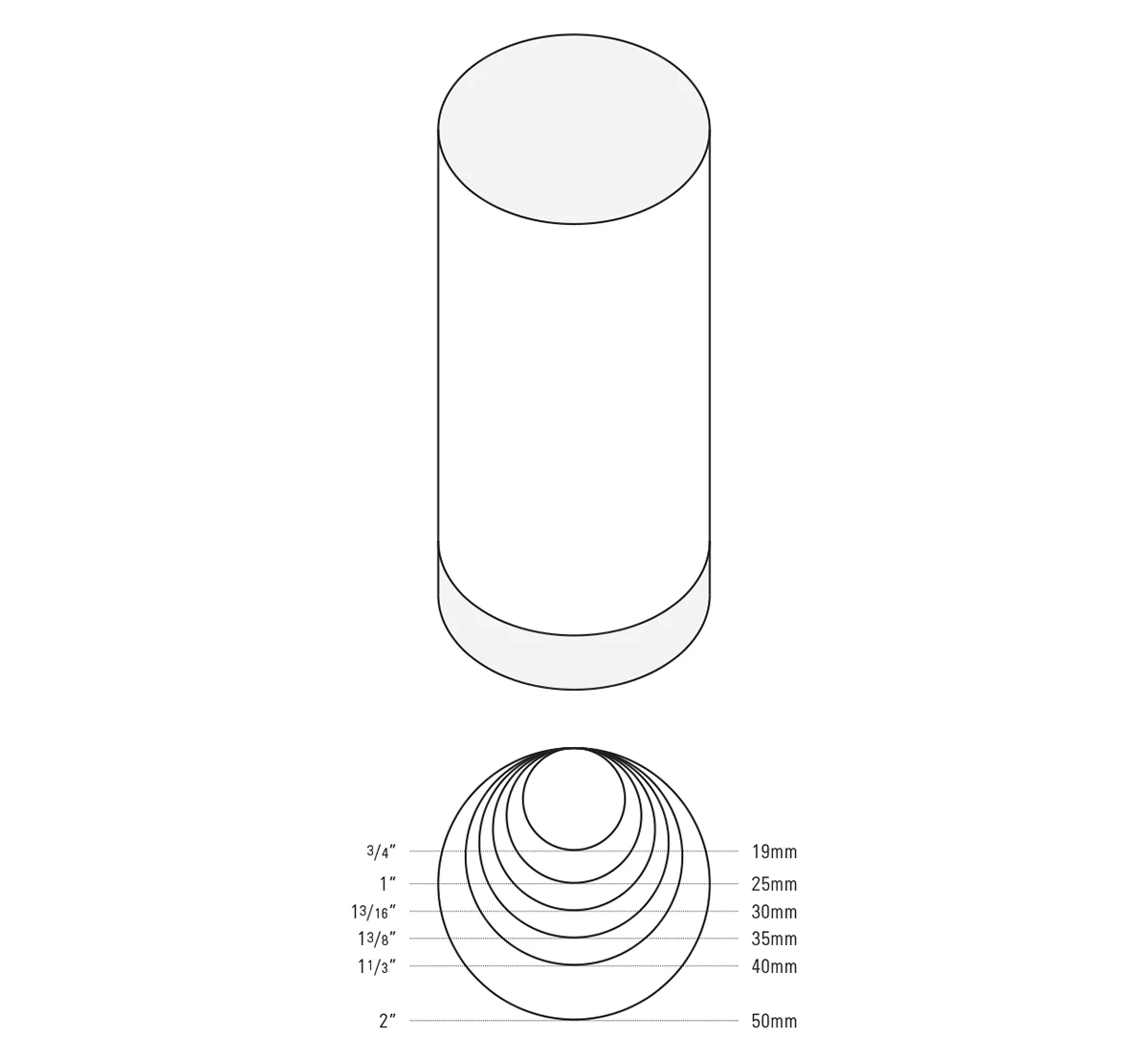

Product Volume Table for Bump On Tubes

Use the guides below to work out the length and diameter tube that you require for your volume of product. Tube diameter is set, the length of tubing can be adjusted. These values are approximates only.



Product Volume Table for Screw On Tubes

Use the guides below to work out the length and diameter tube that you require for your volume of product. Tube diameter is set, the length of tubing can be adjusted. These values are approximates only.

Product Volume Table for Oval Tubes

Use the guides below to work out the length and diameter tube that you require for your volume of product. Tube diameter is set, the length of tubing can be adjusted. These values are approximates only.

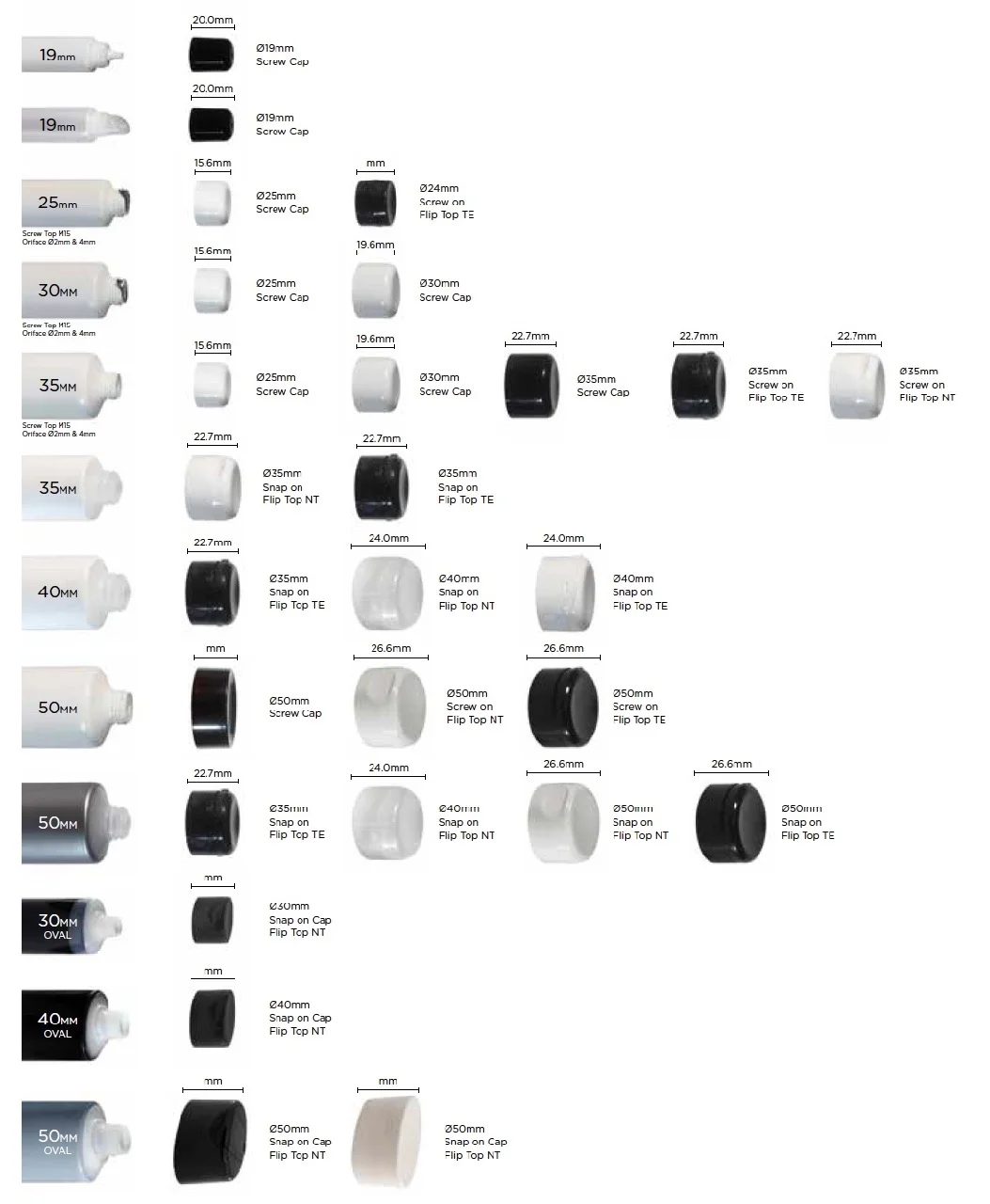

Tube and Cap Specifications Chart



Features and benefits of RPC Astrapak's Tubes

Available in many different sizes with a multitude of decorative options. RPC ASTRAPAK’s range of tubes combine aesthetic appeal with functionality. Available in mono layer, 2 layer or 5 layer (including EVOH) configurations. RPC ASTRAPAK tubes can be used in the most demanding applications.

TAMPER-EVIDENT BANDS ON ALL FLIP-TOP CAPS
Offers retailers and consumers ultimate protection against in-store browsing and tampering.

DECORATIVE FOILING ON CAPS AND TUBES
Caps and tubes can be foiled on circumference to enhance product image.

VARIETY OF VARNISHES
To provide matt/gloss appearance and varied textures for feel.

ALIGNMENT OF FLIP-TOP CAPS WITH FRONT PANEL OF TUBE
Provides for excellent on-shelf presentation and user-friendly orientation.

LABELLING
Accurate patch and wrap around labelling ensures the most demanding designs can be used on tubes.

ABILITY TO PRINT IN CMYK
Provides more flexible options for design.

MULTI-COLOUR SCREEN PRINT DECORATION
Features bold, accurately aligned colour decoration.

FOIL SEALS ON ALL SCREW TOP TUBES
Ensures integrity of product to end-users.

SPECIAL APPLICATIONS
Add consumer appeal and ease of use.

EXTRUDED TUBE BODY
Consistent wall thickness for uniform feel and quality printing.

HIGH-TECH IN-HOUSE QUALITY INSPECTION
Ensures product conforms consistently to the most stringent international specifications.

STATE-OF-THE-ART MANUFACTURING AND DECORATING TECHNOLOGY
Allows for efficient production runs of all sizes from a minimum of 5000 units to large, continuous runs.
